Contract Item

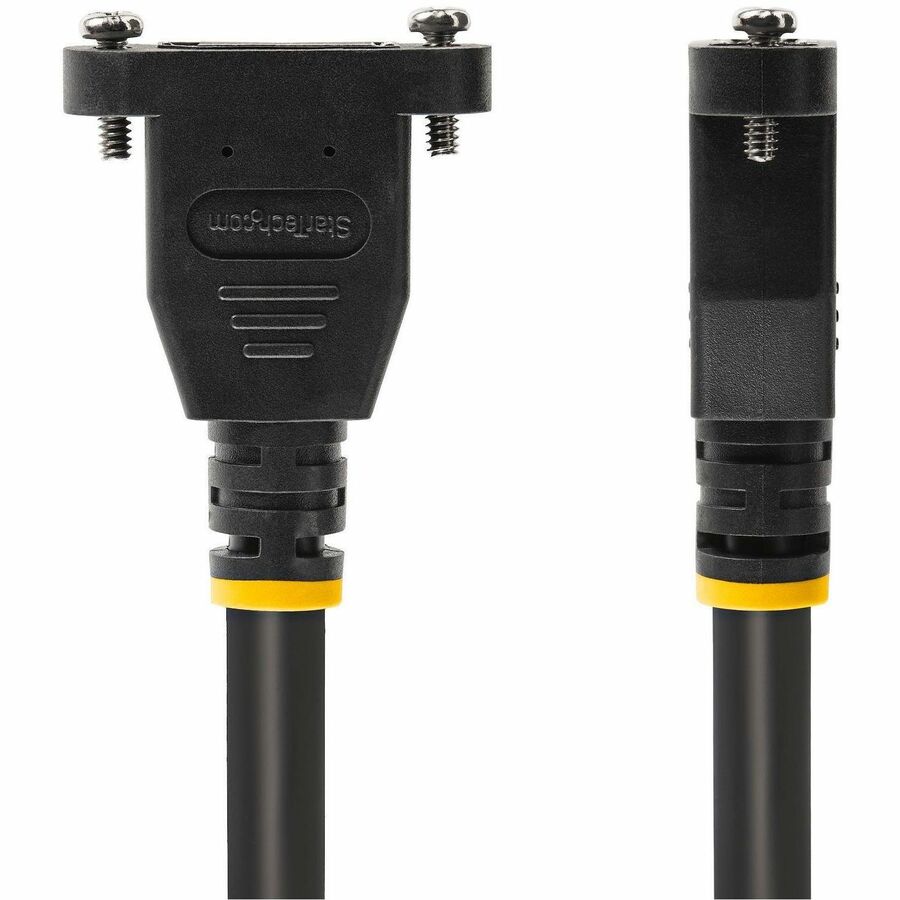

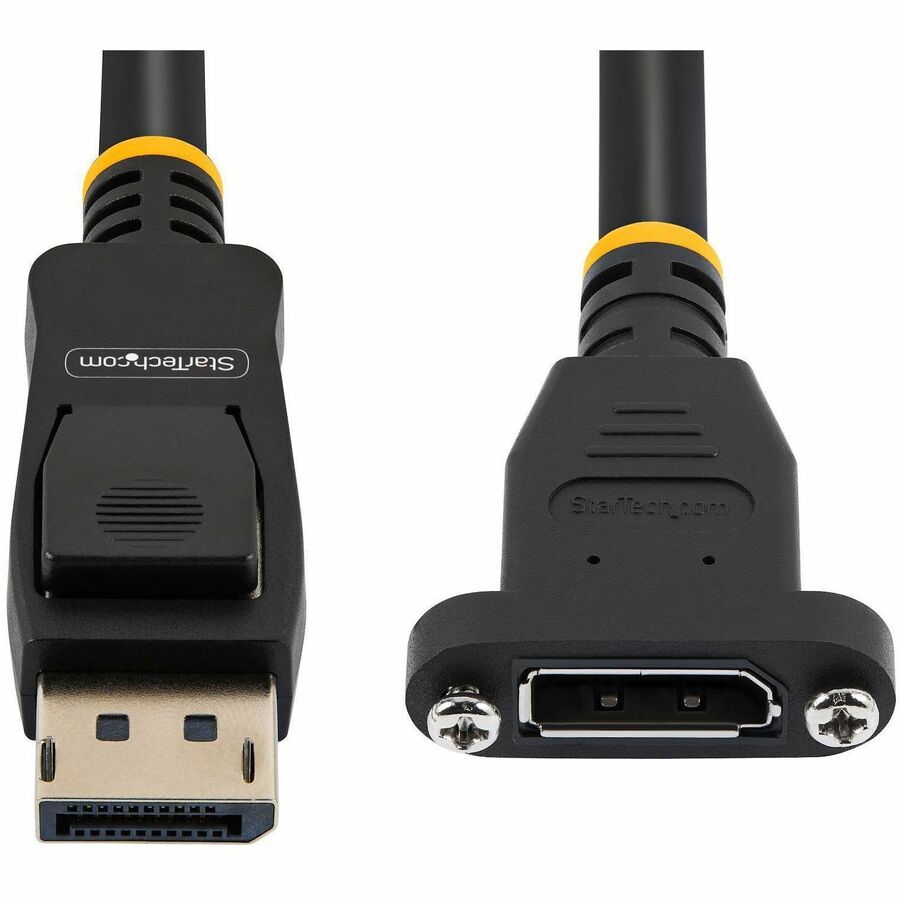

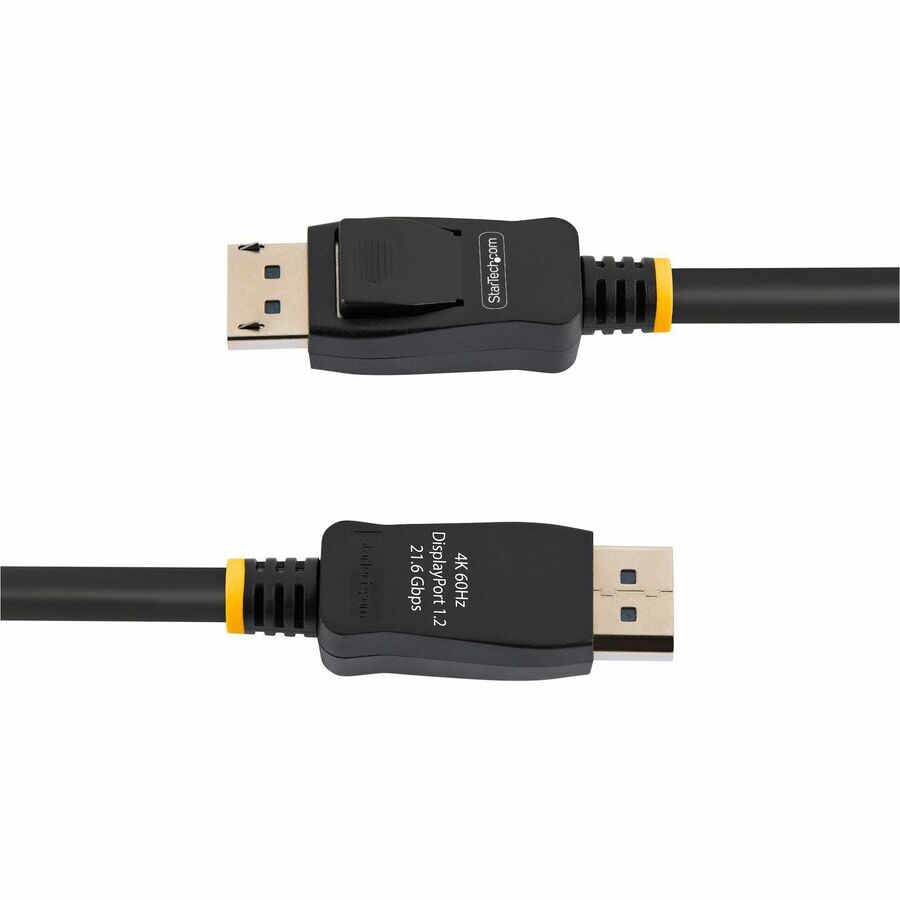

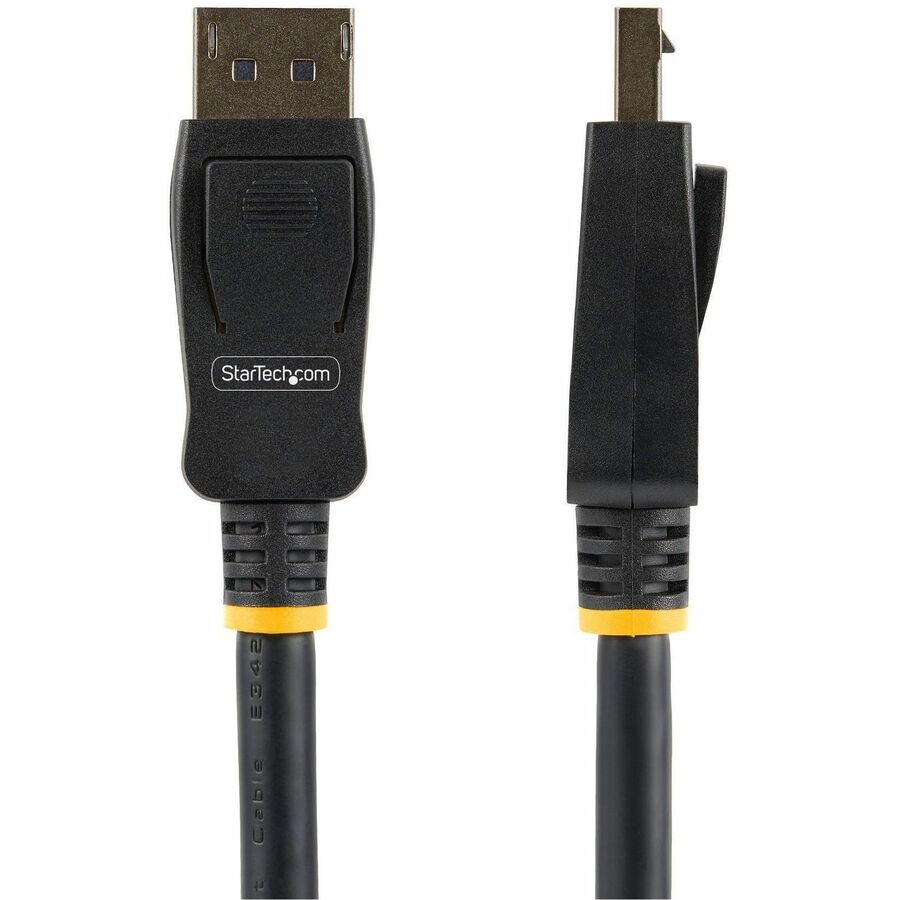

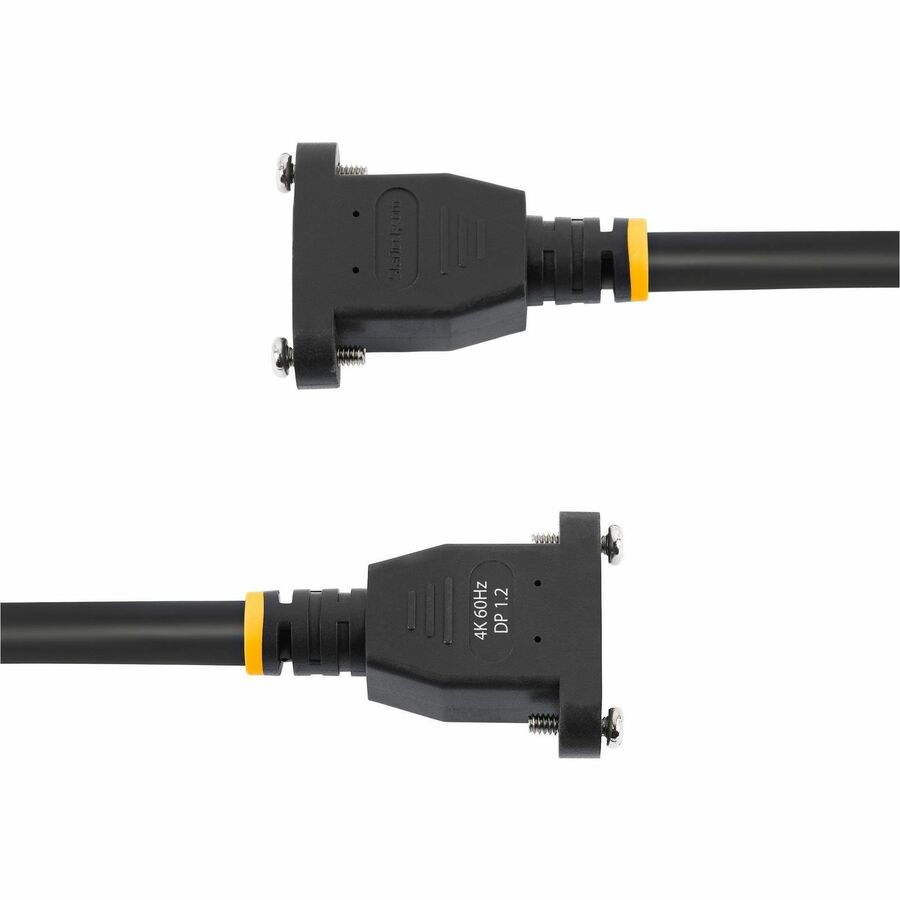

StarTech.com 3ft DisplayPort Panel Mount Cable - F/M - 3 ft DisplayPort Video Cable for Audio/Video Device - First End: 1 x 20-pin DisplayPort Digital Audio/Video - Male - Second End: 1 x 20-pin DisplayPort Digital Audio/Video - Female - Gold Plated Conne
- PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio
- APPLICATIONS: Add extra 6ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display
- SPECS: 3' (0.91m) | Black | DisplayPort 1.2 | DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws) | 28 AWG | PVC cable jacket, ABS connector shell | Shield: Double sided copper foil | Backward compatible w/ DP1.1 | Lifetime Warranty
Description
Specifications
Lead Time
Ships in 6-10 Business Days
UNSPSC Code
26121604
Weight
0.2lb
Height
0.5in
Width
7.1in
Length
7.1in
Catalog Page Number
NEW
Brand
StarTech.com
Brand Name
StarTech.com
Cable Length
3 ft
Cable Type
DisplayPort
Category
Networking & Wi-Fi Accessories
Color Family
Black
Conductor
Copper
Connector on First End Details
1 x 20-pin DisplayPort Digital Audio/Video - Male
Connector on Second End Details
1 x 20-pin DisplayPort Digital Audio/Video - Female
Connector Plating
Gold
Connector Type on First End
DisplayPort Digital Audio/Video - Male
Connector Type on Second End
DisplayPort Digital Audio/Video - Female
Country of Origin
China
Device Supported
Audio/Video Device
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Environmentally Friendly
Yes
Features
Molded
Jacket Material
Polyvinyl Chloride (PVC)
Jacket Type
CMG
Limited Warranty
Lifetime
Manufacturer
StarTech.com
Manufacturer Part Number
DPPNLFM3
Manufacturer Website Address
http://www.startech.com
Packaged Quantity
1 each
Packing
Bagged
Product Color
Black
Product Name
3ft DisplayPort Panel Mount Cable - F/M
Product Type
Video Cable
Shipping Height
8.27"
Shipping Weight (Approximate)
3.36 oz
Weight (approximate)
0.17 lb
Compare
Contract Item
StarTech.com 3ft DisplayPort Panel Mount Cable - F/M - 3 ft DisplayPort Video Cable for Audio/Video Device - First End: 1 x 20-pin DisplayPort Digital Audio/Video - Male - Second End: 1 x 20-pin DisplayPort Digital Audio/Video - Female - Gold Plated Conne
- PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio
- APPLICATIONS: Add extra 6ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display
- SPECS: 3' (0.91m) | Black | DisplayPort 1.2 | DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws) | 28 AWG | PVC cable jacket, ABS connector shell | Shield: Double sided copper foil | Backward compatible w/ DP1.1 | Lifetime Warranty
